Programmable Outdoor Full Color Led Signs, Full Colr Video Portable
Outdoor Led Signs

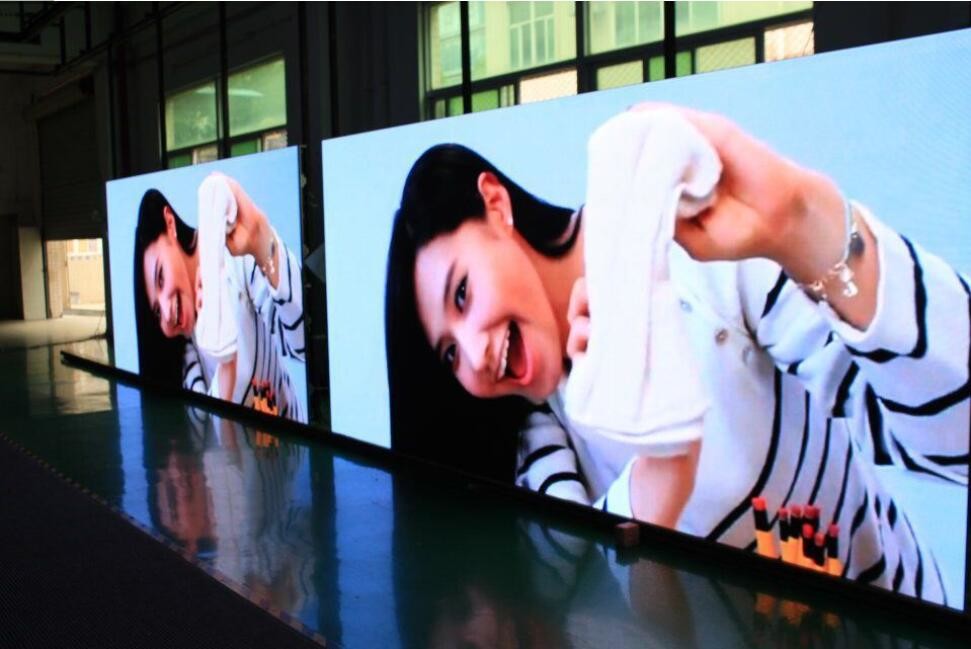

P8/P10/P12/p16 outdoor led screen adopts physical and virtual pixel
technology which makes the picture more clear and vivid, no flicker
and blind dots. The screen is manufactured in a waterproof and
dustproof design so it can work very well in rain and sunshine. It
can be assembled and disassembled very easy, and it is an ideal
product for any kind advertisements.
Specifications:
| Outdoor Fixed Installed Giant Advertising Media LED Displays |
| Main | Pitch/mm | P8 | P10 | P16 |
| | | |
| Module size/mm | 256x128 | 160x160 | 256x256 |
| Density of pixel/(dots/m2) | 15,625 | 10,000 | 3,906 |
| Pixel composition | 1R1G1B | 1R1G1B | 1R1G1B |
| Led encapsulation | SMD3535 | DIP346 | DIP346 |
| Resolution of module | 32x16 | 16X16 | 16X16 |
| Optimum viewing distance | ≥6 | ≥10 | ≥15 |
| View angle / ° | 140H,120V | 110 H,60 V | 110 H,60 V |
| Average power consumption/W/M2 | 500 | 450 | 350 |
| Max power consumption/W/M2 | 1000 | 950 | 700 |
| Size of cabinet/mm | 1024X768 | 960X960 | 1024X1024 |
| Resolution of cabinet | 128X96 | 96X96 | 64x64 |
| Driving method | 1/4 scan constant current | 1/4 scan constant current | Static constant current |
| Refresh rate Hz/S | ≥1200 | ≥1200 | ≥1200 |
| Luminance of white balance | ≥6000 nits | ≥7500 nits | ≥7000 nits |
| Operation of Environmental Temperature/℃ | below 30 to above 50 |
| IP rating | Front,IP65;Rear,IP43 |
| Working voltage | 110-220 VAC/+/- 10% |
| Grey scale/color | displaying colors≥16.7M(synchronized) |
| Brightness adjustment | 4096 levels of each color(manually),100 levels of each
color(automatically) |
| Input signal | RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc |
| Control system | Linsn / Nova(sending card,receiving cards and Hubs) |
| Average of non-failure life | >50,00h |
| Life span | >100,000h |
| Functionless dot rate | <0.0001 |
Main advantages:
1. New mask design makes LED light almost zero reflection, which
ensures the screen displaying effect;
2. The cabinet of unit modules adopts to high-temperature spraying technology, the antirust function is greatly
improved;
3. Module surface flatness ± 0.2mm, the entire screen has good
flatness;
4. High uniformity display color;
5. For improving the service life, PCB is made by wave soldering
process with the green oxygen isolation layer, which prevents the
line of moisture and oxidation.
6. Service efficiency of the screen switch power supply is
increased substantially, which reduces power failure rate
Applications:
Commercial advertising: Square, Road side, High way, Airport,
Wharf, Hotel, Restaurant etc
Package:
Flight case and Fumigation-Free wooden case
