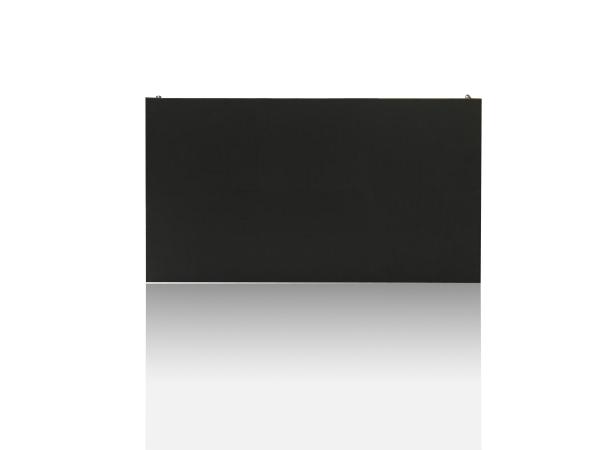

High Definition LED Video Wall Display With Smart Aluminum Light
Weight Thin Cabinet
Ultra wide angle of view
Ultra wide angle of view,from any perspective images are clear
natural,to experience the great subversive viewing experience
Top-lever brightness control
Expansion of brightness adjustment range increase the brightness
and contrast ratio of picture. This function can fully perform
delicate change of brightness,so it can present a vivid clear
picture to audience.
Detail Specifications of the HD LED Display:
| Pixel Configuration | SMD1010 |
| Pixel pitch(mm) | 1.44mm |
| Pixel density(dots/m2) | 480711 |
| Module resolution(W×H) | 208×117 |
| Module size (mm) | 300(W)×168.75(H) |
| Module weight (kg) | 0.8 |
| Maximum power consumption of the module(W) | 40 |
| Module of cabinet (W×H) | 2×2 |
| Cabinet resolution(W×H) | 416×234 |
| Cabinet size (mm) | 600(W)×337.5(H)×86(D) |
| Cabinet area(m2) | 0.2 |
| Cabinet weight (kg) | 7.8 |
| Cabinet level up degree(mm) | ≤0.2 |
| Maintenance mode | Front/Rear |
| Cabinet raw material | Die-casting aluminum |
| Single-point brightness correction | YES |
| Single - point color correction | YES |
| White Balance Brightness (nits) | ≥800(6500K) |
| Color Temperature (K) | 3200—9300 (adjustable) |
| Viewing Angle (Horizontal / Vertical) | 160/160 |
| Deviation of center distance of light - emitting | <3% |
| Brightness / chromaticity uniformity | ≥97% |
| Contrast | 4000:1 |
| Peak power consumption (W / m2) | 800 |
| Average power consumption (W / m2) | 250 |
| Power supply requirements | AC90~264V,frequency 47-63(Hz) |
| Frame rate (Hz) | 50&60 |
| Drive mode | Constant drive,1/27 |
| Grayscale level | 65536 |
| Refresh rate (Hz) | ≥3840 |
| Number of color processing bits | 16bit |
| Video playback capabilities | 2KHD,4KHD |
| Operating temperature / humidity range (℃ / RH) | -20 – 60 / 10%-85%RH |
| Storage temperature / humidity range (℃ / RH) | -20 – 60 / 10%-85%RH |
| Applicable standards | CCC,CE,RHos |
Pixel Pitch: PH1.44mm
Cabinet Size: 600 x 337.5 x 85mm
1. Locating slot work with dowel pin to ensure good flatness
2. 16bit gray scale processing, color expression more naturally
3. Gapless installation, wider viewing angle, good color uniformity
4. Soft images,green and environmental protection
5. High refresh rate, remove ghost without trailing
Application of HD LED Display:
PASSION LED P1.44 indoor HD LED display is also called HD LED TV as
one of the most popular led display used in TV Studio,
Entertainment Center, Surveillance Room, Indoor meeting hall. With
small cabinet size: 600 x 337.5mm, Die-casting aluminum structure
with high precision and cooling effect.
Natural Color
16bits Gray processing techology,with 65536 grayscale,excessive
nature,according to the video picture of extremely fine
texture,looked more comfortable.
High definition display
It delivers a truly amazing pciture in every details with
extrodinary pixels producing an image that is HD quality in an LED
screen
16:9 Design and Good Uniformity
16:9 design. Cabinet's 16:9 resolution is specialized for command
center. Perfect replacement for LCD display.
Die cast aluminum cabinet, guarantee you a flat and seamless
screen.
Good uniformity. Dot-to-dot correction technology provide you pure
image with great gradation.
