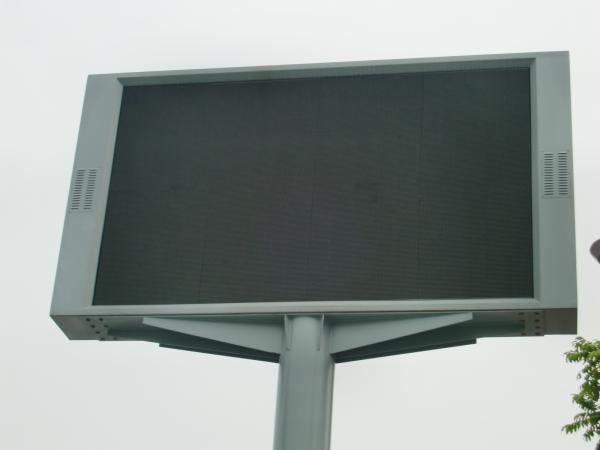

Stadium Big Outdoor Advertising Screen Waterproof Iron Structure
MBI5124 IC
Description of Outdoor Advertising Screen:
1. High viewing angle: 110°(Horizontal )/45°(Vertical )
2. Special Structure design for water-proof, dust-proof,
moisture-proof, and anti-static electric
3. High Contrast. The Contrast is above 2000:1, so the viewer can
have a wonderful visual
4. Outstanding consistency in color and brightness, no mosaic
effects.
Quick Detail of Outdoor Advertising Screen:
1. Super brightness: >8000cd/㎡,
2. Support any format of video,Support any format of
video,RF,S-Video, RGB,RGBHV,YUV,YC,COMPOSITION
3. Color and brightness simultaneously adjusted, vivid and high
definition images.
4. CE, RoHS qualified.
5. Front service is available.
6. Longer lifespan. (more than 100,000 hours life)
Applications of Outdoor Advertising Screen:
Commercial advertising: Square, Road side, High way, Airport,
Wharf, Hotel, Restaurant etc
Specifications of Outdoor Advertising Screen:
1. Outdoor LED Display Technical Parameter
| Model No. | POP-P16 |
| Pixel Pitch | 16mm |
| Module Size | 256mm×256mm |
| Module Resolution(dots) | 16*16 |
| Panel Size | 1024mm×768mm |
| Panel Resolution(dots) | 64×48 |
| Pixel Configuration(RGB) | 1R1G1B |
| Pixel Density(dots/m2) | 3906 |
| Brightness(cd/m2) | ≥ 8000 |
| Best Viewing Distance(m) | 15-300 |
| Max. Power Consumption(W/m2) | 1000 |
| Drive Mode | Static |
| Wavelength | R 620-625 G 520-525 B 470-475 |
| Viewing Angle | 110°(H)/45°(V) |
| Operating Temperature | –20~60°C |
| Video Frame Rate(Hz) | ≥60HZ |
| Display Refresh Rate(Hz) | ≥300HZ |
| Grey Level(colors) | 16.7million |
| Life Span | ≥100,000 hours |
| Working Voltage | 220V±15% OR 110V±15% |
| Video Signal Input | RF,S-Video, RGB,RGBHV,YUV,YC,COMPOSITION |
| Control System | LINSN OR NOVASTAR |
2. Outdoor LED Display Module:
| Module Size (W*H) | 256mm*256mm | Pixel Configuration | 1R1G1B |
| Pixel Pitch | 16mm | Resolution (W*H) | 16 dots*16 dots |
| Pixel Density | 3906 dots/㎡ | LED Type | 3mm Oval Lamp |
3. Outdoor LED Display Cabinet:
| Cabinet Size (W*H) | 1024mm*768mm | Module Qty | 12 pcs |
| Cabinet Resolution (W*H) | 96 dots*64 dots | Cabinet Pixel | 6144 |
| Weight | 40 kg/ Cabinet | Area | 0.6144㎡ |
| Average Power Consumption | 350w/㎡ | Max Consumption | 1000W/m2 |
4. Methods for Quality Assurance
a. Aging
b. Vibration Testing
5. Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection
(AOI) Equipement.
6. Package
Flight case and Fumigation-Free wooden case
7. Competitive Advantage:
1. Long Life Span > 100,000 hours
2. High Quality and High performance
3. Front/Rear access Available
4. Reasonable Price, Superior Service.
5. Free maintenance service
