Low Noise LED Light Screen Backdrop Temperature Automatic
Adjustment
Details
1. High Definition and can be adjusted, can show DVD, TV, Dynamic
images, VCRs, graphs, letters and animations for 24 hours.
2. Best equality, commendably solve the problem of the mosaic, have
the excellent consistency of light
3. To pictures and character, have clear, exquisite and real
display effect of a led sign.
4. Big viewing angle to the horizontal line and vertical line, can
see at every angle at this range, no picture change, no color
excursion.
5. Can repair each led lamps, so the cost of maintenance is lower
and easy to repair for led sign.
Main features of PASSION HD LED screen:
1. SMD3 in 1 technology widens the viewing angle greatly and makes
the screen's surface even flatter.
2. Flatness tolerance of the whole screen is < 0.15 mm, which
thoroughly eliminates the mosaic effect.
3. The screen displays delicate and vivid pictures through
synchronous adjustment of color and brightness.
4. High contrast and high refresh rate help the LED display's image
be rendered without any delay, and without leaving any kind of
streaks or trails.
5. Compatible with a variety of signal source inputs, such as AV,
S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc.
6. Professional aviation packaging protects the control equipment
extremely well
7. Light, ultra-thin display cabinet's total weight is only 5kg.
8. Standard cabinet size is 400mm*300mm.
9. Dustproof design, the screen is rated IP43.

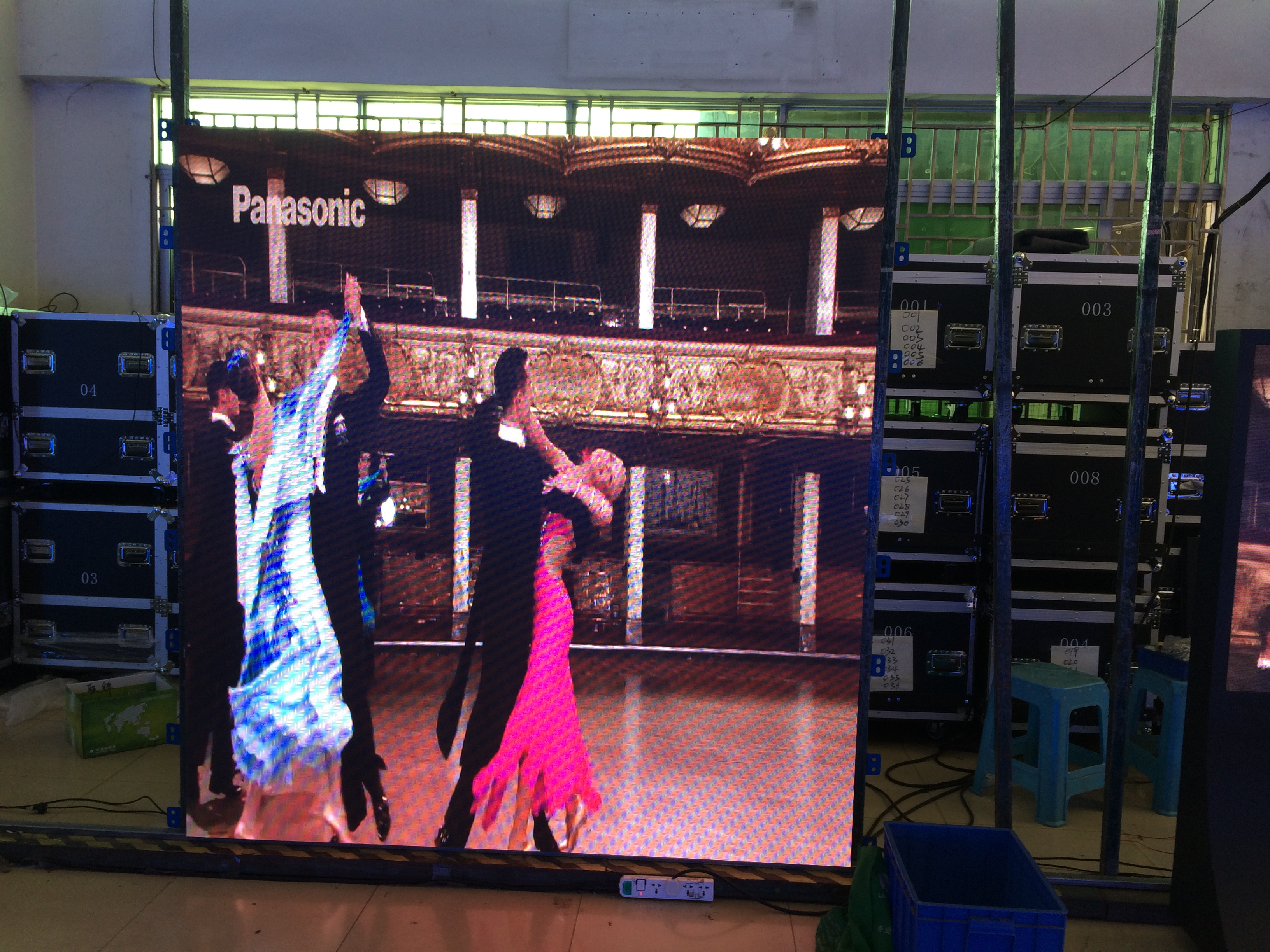

Application of HD LED screen:
Indoor HD led display is also called led TV as one of the most
popular led display used in TV Studio, Entertainment Center,
Surveillance Room, Indoor meeting hall. With small cabinet size:
400 x 300mm, Die-casting aluminum structure with high precision and
cooling effect.
| Indoor P2mm fixed LED screen specification |
| LED Module | Pitch/mm | PH2.0 |
| Module size/mm | 200*300 |
| Density of pixel/(dots/m2) | 270400 |
| Pixel composition | 1R1G1B |
| Led encapsulation | SMD1010 3 IN 1 |
| Resolution of module | 100*150 |
| LED Screen | Optimum viewing distance | 2~20M |
| View angle | H:±160°;V±160° |
| Average power consumption | 220W/sqm |
| Max power consumption | 790W/sqm |
| Module quantity | 2*1pcs |

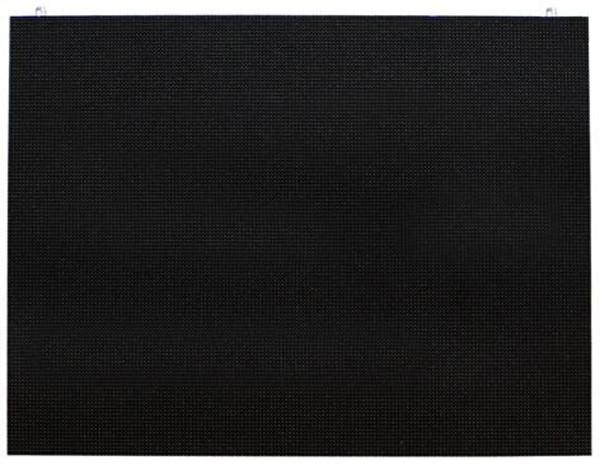

| Size of cabinet/mm | 400*300 |
| Resolution of cabinet | 200*150 |
| Cabinet Material | Die casting aluminum cabinet |
| Weight of cabinet | 5Kg |
| Driving method | 1/30 scan constant current |
| Frame frequency / Hz/S | ≥60 |
| Refresh frequency / Hz/S | 2000 |
| Brightness | 1200cd/m2 |
| Operating temperature | –10C°～40C° |
| Storage temperature | –20C°～60C° |
| Operation humidity | 10%-80% |
| Storage humidity | 10%-85% |
| IP Rrating (Front/Rear) | IP43 |
| Working vlotage | AC220V / AC110V ±10% |
| Grey scale/color depth | displaying colors≥16.7M(synchronized); 14bits |
| Brightness adjustment | 256 levels of each color(manually) |
| Input signal | RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc |
| Control system | linsn/Colorlight/Nova(sending card,receiving cards and Hubs) |
| Average of non-failure life | ≥50,00h |
| Life span | ≥100,000h |
| Functionaless dot rate | ≤0.0001 |
| Control distance | CAT cable: 100m; Muti-mode fiber: 500m; Single-mode fiber: 15km |
