    RGB Indoor Full Color LED Display Synchronous Adjustment Varioussignal Source Inputs

    Ask Lasest Price
    Brand Name : PASSION
    Model Number : P5mm
    Certification : CCC, CE, ROHS
    Price : Negotiation
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1000sqm/month
    Delivery Time : 10-20 working days
    • Product Details
    • Company Profile

    RGB Indoor Full Color LED Display Synchronous Adjustment Varioussignal Source Inputs

    RGB Indoor Full Color LED Display Synchronous Adjustment Varioussignal Source Inputs


    Main features of PASSION HD LED screen:

    1. SMD3 in 1 technology widens the viewing angle greatly and makes the screen's surface even flatter.
    2. Flatness tolerance of the whole screen is < 0.15 mm, which thoroughly eliminates the mosaic effect.
    3. The screen displays delicate and vivid pictures through synchronous adjustment of color and brightness.
    4. High contrast and high refresh rate help the LED display's image be rendered without any delay, and without leaving any kind of streaks or trails.
    5. Compatible with a variety of signal source inputs, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc.
    6. Professional aviation packaging protects the control equipment extremely well
    7. Light, ultra-thin display cabinet's total weight is only 5kg.
    8. Standard cabinet size is 400mm*300mm.
    9. Dustproof design, the screen is rated IP43.


    LED Modules:



    Product Specifications:


    ParameterValue
    Physical ParameterPixel Configuration1R1G1B
    Pixel Pitch (mm)5
    Pixel Matrix per m2 (dots)40000
    Pixel Matrix per Module64*32
    Pixel Matrix per Panel192*192
    Module Dimensions (L*W) / (mm)320*160
    Module Quality per Cabinet3*6
    Panel Dimension (L*W) / (mm)960*960
    Panel MaterialIron / Aluminum
    Panel Weight (Kg)40
    Electronic ParameterColor Grayscale (Bit)14
    Gray Scale per Color (Level)16384
    Refresh Rate (Hz)1280
    Driving Type1/16
    Frame Frequency (Hz)50/60
    Signal Transmission Distance (m)CAT5 cable:<100m;Single mode fiber:<10km
    Optical ParameterBrightness (cd/m2)≥1500
    Color Temperature (K)6500-7500
    Color Contrast4000:1
    Optimal Horizontal Viewing Angle (°)160
    Optimal Vertical Viewing Angle160
    Electrical ParameterAC Input Voltage (V)100~240
    AC Input Frequency (Hz)50/60
    AC Input Power Maximum Value (W/m2)600
    AC Input Power Typical Value (W/m2)200
    Circumstance ParameterStorage Temperature (℃)-40~+60
    Operating Temperature (℃)-20~+50
    Storage Humidity (RH)10%~90%
    Operating Humidity (RH)10%~90%
    IP Rating (Front / Rear)IP43 / IP31
    Lifrtime Typical Value (Hrs)100,000
    Installation typeCabinet Installation TypeFixed
    Maximum Number of Panel for Lifting6

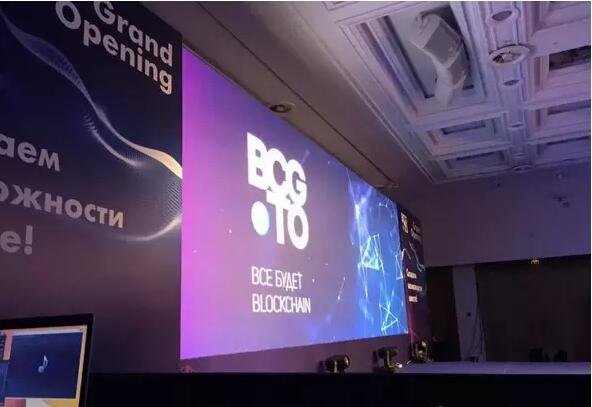

    Application of HD LED screen:
    Indoor HD led display is also called led TV as one of the most popular led display used in TV Studio, Entertainment Center, Surveillance Room, Indoor meeting hall. With small cabinet size: 400 x 300mm, Die-casting aluminum structure with high precision and cooling effect.
