1000Hz Flexible LED display Curtain Screen , Soft full color
flexible led video curtain
1. Transparent led display--The lattice structure of the novel with
the features of folding, twisting, light-weight, good appearance,
good adaptability to the environment;
2. Transparent led display--Innovative installation: quick, simple,
flexible;
3. Transparent led display--Unique Feature: embedded wireless
control technology for more convenient and simple operation;
4. Transparent led display--High-speed video processing technology
for rich display, unique effect and strong appeal.
| Model Name | NM6 |
| Pixel Pitch | 37.5mm / 56.25mm / 75mm (pixel pitch can also be customized) |
| Pixel Configuration | 6*SMD3535 |
| Panel Size | 0.3m x 4.8m / 0.45m x 7.2m / 0.6m x 9.6m (Size can be customized)
0.98' x 15.75' / 1.48' x 23.62' / 1.97' x 31.50' |
| Brightness | 7200nits/ 5100nits /2400nits (Nationstar SMD3535) |
| Transparency Rate | 55% / 75% / 85% |
| Weight | 10.5 kg/sqm; 5.5 kg/sqm; 3.5 kg/sqm
23.1 lbs/sqm; 12.1 lbs/sqm; 7.7 lbs/sqm |
| IP Rating(Front/Rear) | IP66 |
| Refresh Rate | 1000 Hz |
| Scan Mode | Static |
| Max Power Consumption | 600 W/sqm; 400 W/sqm ; 250 W/sqm |
| Color Processing | 16 bit |
| Viewing Angle(H/V) | 140°/110° |
| Operating Temperature | -40~45°C |
| Main Power Source | AC 100-240V; 50/60Hz |
| Input Voltage | 24V DC |
| Humidity | 10~90%RH |
| Life Time | 100,000 Hours |
Amazing advantages for flexible transparent led display:
(1). Nation star GOLDEN wire led lamp --- Best brand in China
domestic with the best features and reputation all over the world
(2). Break point Transferring --- If one pixel failed, not
influence working of the pixels behind.
(3). High temperature and Low temperature resisting
(4). Simple and fast installation --- Signal and power are two in
one slave controller box.
(5). Professional control system for innoviation shape video
screens
(6). Flameresistant material
(7). Strong cable
(8). Nice appearance --- Even it not turn on, still looks beautiful
like handiwork.
(9). Fast repairing and changing pixels

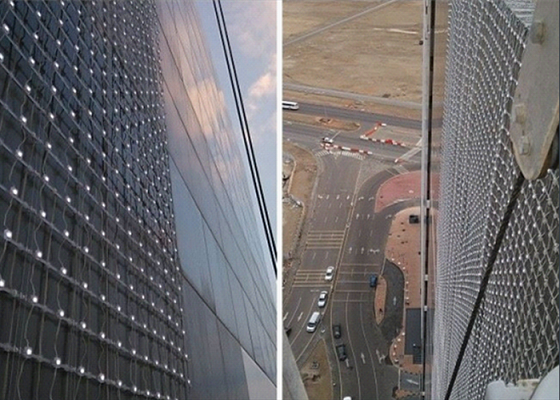

PASSION LED NM flexible curtain is an outdoor LED mesh screen
series, its unique soft structure allows the screen to bend, roll
up, hang and fold a variety of unique shapes. The products are
widely used in the stage background design, bar , DMX lighting,
building facades, and a variety of scene layout and decorative
lighting.
1. Soft and flexible, application scenarios are not limited
2. Shape, size, color, spacing can be customized
3. Easy installation and maintenance, no box structure, modular
splicing convenient
4. Magnetic buckle, quick connection and removal, suitable for
activitie
