2000 CD Advertising LED Display Screen , P5mm LED Signs With Front
Access
Quick Detail:
1. ≤1mm surface level up, smooth video
2. Long lifespan up to 100,000 hours
3. Front or Rear Access Service
4. 2 years warranty
5. Perfect quality and stability, 24/7 running
6. Support any format of video, RF, S-Video, RGB, RGBHV, YUV, YC,
COMPOSITION
SMD 3 in 1, 32*32dots, IP31 ,P5 Video Indoor Full Color LED Display With High Contrast ≥2000:1
Description:
1. With good lightening accordance and no mosaic.
2. Can play different formats of image files, flash, video signal
from TV, video and other equipments.
3. Different video frequency can be changed freely at the same
time, and the image can be enlarged and
shrinked.
4. High brightness, and can be adjustable, meets the needs of
customer's requirements.
Uses real pixels rather than virtual pixels, better viewing effect
.
Specifications:
1. Indoor LED Display Technical Parameter
| Model No. | PI-P5 |
| Pixel Pitch | 5mm |
| Module Size | 160mm×160mm |
| Module Resolution(Pixel) | 32dots×32dots |
| Pixel Density | 40000dots/m2 |
| LED Type | SMD 3 in 1 |
| Pixel Configuration | 1R1G1B |
| Wavelength (R.G.B) | R:625±2nm G:525±2nm B:470±2nm |
| Drive Mode | Dynamic 1/8 Duty Constant Current |
| Cabinet Size | 800×640×135mm |
| Cabinet Resolution | 160dots×128dots |
| Brightness | ≥2000cd/m2 |
| Contrast | ≥2000:1 |
| Viewing Angle | 140°(Horiztal )/45°(Vertical ) |
| Best Viewing Distance | ≥5 m |
| Grey Scale | 10bits/1024levels |
| Color Capability | 16777216 |
| Color Temperature | 5000-9300K |
| Maximum Power Consumption | 2000 W/m2 |
| Average Power Consumption | 650 W/m2 |
| Working Voltage | AC 220V/110V s±15% 50-60 HZ |
| Frame Frequency | 60-85HZ |
| Refresh Frenquency | 240-1000HZ |
| Brightness Correction | Pixel, Module, Cabinet Correction |
| Operating Temperature | Static:-40°C~+85°C Working:-20°C~+60°C |
| Operating Humidity | 10-90% RH |
| LED Lifespan | 100,000 hours |
| MTBF | ≥50,000 hours |
| Computer Operation System | Win 98/ Win XP/ Win 2000 |
| Video Signal Input | RF,S-Video,RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
| Video Signal Output | RF, S-VideoR, GB, RGBHV, YUV, YC etc. |
| Graphics Card | DVI Graphics Card |
| Control Distance | UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km |
| Control System | LINSN OR DB-STAR |
| Software | LED studio 10.0 |
| Waterproof Level | IP31 |
| Installlation | Wall mount,hung and stand structure |
2. Indoor LED Display Module
| Dimensions (w x h) | 160mmx160mm | Resolution (w x h) | 32 x 32 |
| Pixel pitch | 5mm | Pixel Density | 40000/㎡ |
| Pixel Configration | 1R,1G,1B | LED Type | SMD3528 |
3. Indoor LED Display Cabinet
| Dimensions(w x h x d)(mm) | 960x960x135 | Module Quantity | 36 |
| Physical Resolution (w x h) | 192 x 192 | Physical Pixels (total) | 36864 |
| Weight/Panel (kgs) | 55 | Material | Cold rolled steel |
| Average Power/sqm (watts) | 350 | Max Power/sqm(watts) | 1000 |
4. Methods for Quality Assurance

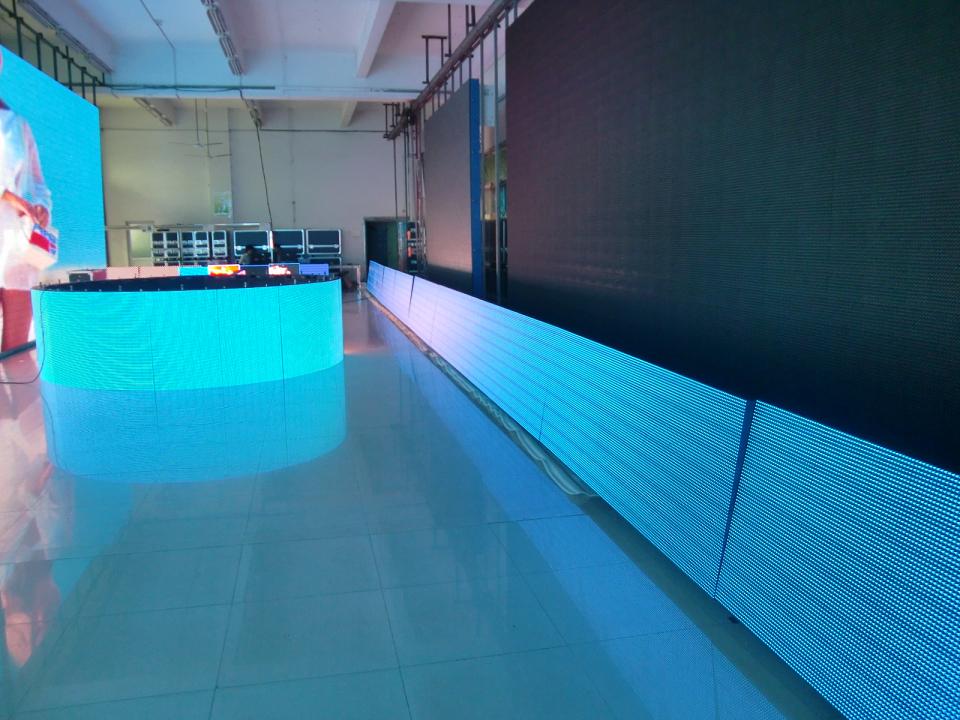

a. Aging
1. 100% fully test
2. Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
5. Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection
(AOI) Equipement.
6. Package
Flight case and Fumigation-Free wooden case
7. Competitive Advantage:
1. 2 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. Onsite installation instruction and regular inspection
Applications:
Commercial advertising, mobile media, night club, entertainment
events, business establishments, such as
banks, stock exchange centers, bus station, schools,
telecommunications, customs, stadiums, studio,
shopping malls, railways, airports, harbors, etc;
