55Kg LED Stage Backdrop Screen High Return IP65 Intelligent Control
Dust Proof
Promotion: outdoor advertising digital display screens with high
quality is the most popular for outdoor advertising. It canbe used
for outdoor fixed and rental market. You can see this kind of led
screen in the shopping mall, airport, train stations, walking
street, square, park, Stadium, Plaza, Expo Center, Business Center,
CBD, Governmenr Project, High buildings, ect.
Features of this LED Stage Backdrop Screen
1) High brightness for outdoor advertising;
2) Smooth image, DIP(One LED in One Pixel), reduced the amount of
LEDs, improved the image effective
3) More wide viewing angle.
4) Low cost, high return. Cheap price than other outdoor
advertising digital display screenss.

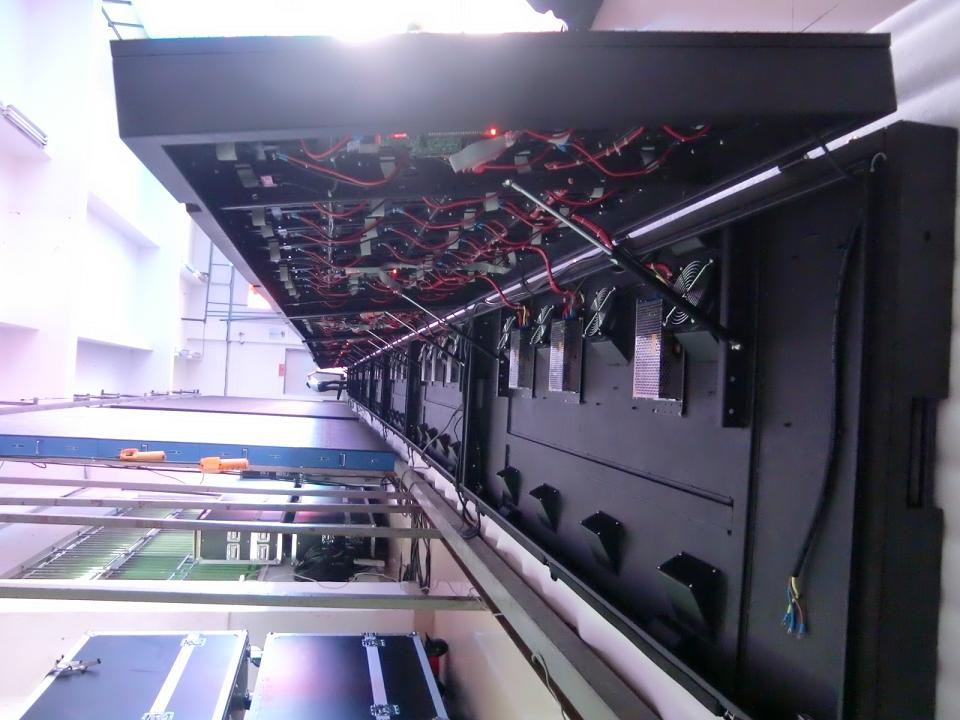

Front Maintenance LED Display is high brightness, full color outdoor LED screen for large format
video displays. Front maintenance LED display is manufactured using
the highest quality LED components offering stunning brightness,
contrast and colour reproduction. Front maintenance LED display
have an IP65 waterproof rating meaning they are built to withstand
all weather conditions. It has a much higher brightness than its
indoor counterpart, in order to deliver bright and vibrant images,
even in direct sunlight. Each of our front maintenance LED display
is shipped in module format allowing you the flexibility to create
screens of any size. Options are available for front or rear
service access depending on your installation.
| LED Module | Pitch/mm | PH10 |
| Module size/mm | 160*160 |
| Density of pixel/(dots/m2) | 10000 |
| Pixel composition | 1R1G1B |
| Led encapsulation | DIP346 |
| Resolution of module | 16*16 |
| LED Screen | Optimum viewing distance | 8~100M |
| View angle | H:±120°;V±60° |
| Average power consumption | 300W/sqm |
| Max power consumption | 1000W/sqm |
| Module quantity | 6 * 6pcs |
| Size of cabinet/mm | 960*960 |
| Resolution of cabinet | 96*96 |
| Cabinet Material | Iron Cabinet (Aluminum Cabinet optional) |
| Weight of cabinet | 55Kg |
| Driving method | 1/4scan constant current |
| Frame frequency / Hz/S | ≥60 |
| Refresh frequency / Hz/S | 600~2000 |
| Brightness | 7000cd/m2 |
| Operating temperature | –25C°～65C° |
| Storage temperature | –40C°～70C° |
| Operation humidity | 10%-90% |
| Storage humidity | 10%-90% |
| IP Rrating (Front/Rear) | IP65/ IP54 |
| Working vlotage | AC220V / AC110V ±10% |
| Grey scale/color depth | displaying colors≥16.7M(synchronized); 14bits |
| Brightness adjustment | 256 levels of each color(manually) |
| Input signal | RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc |
| Control system | linsn/Colorlight/Nova(sending card,receiving cards and Hubs) |
| Average of non-failure life | ≥50,00h |
| Life span | ≥100,000h |
| Functionaless dot rate | ≤0.0001 |
| Control distance | CAT cable: 100m; Muti-mode fiber: 500m; Single-mode fiber: 15km |
