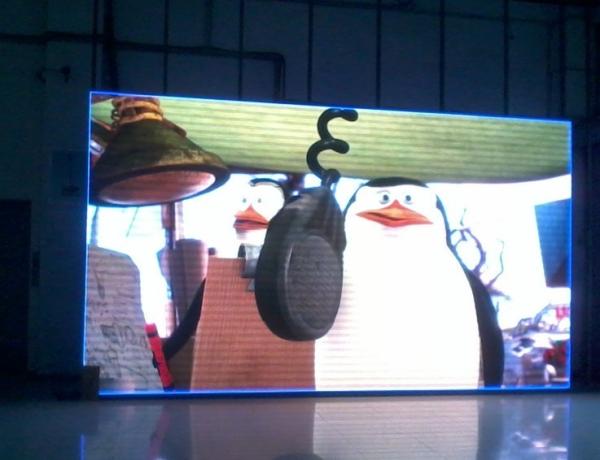

    RGB Stage LED Display High Refresh Rate 576mm*576mm Rmote Control 1200CD / SQM

    Ask Lasest Price
    Brand Name : PASSION
    Model Number : P3mm
    Certification : CE ROHS
    Price : Negotiation
    Payment Terms : T/T, Western Union, MoneyGram, L/C
    Supply Ability : 5000 square meter per month
    Delivery Time : 15 ~ 20 working days
    • Product Details
    • Company Profile

    RGB Stage LED Display High Refresh Rate 576mm*576mm Rmote Control 1200CD / SQM

    RGB Stage LED Display High Refresh Rate 576mm*576mm Rmote Control 1200CD / SQM


    Specification of RGB Stage LED Display:


    Indoor P3mm slim rental LED screen RGB Stage LED Display specification
    LED ModulePitch/mmPH3
    Module size/mm192*96
    Density of pixel/(dots/m2)111111
    Pixel composition1R1G1B
    Led encapsulationSMD2121 3 IN 1
    Resolution of module64*32
    LED ScreenOptimum viewing distance2~20M
    View angleH:±160°;V±120°
    Average power consumption500W/sqm
    Max power consumption1200W/sqm
    Module quantity2*6pcs
    Size of cabinet/mm576*576
    Resolution of cabinet192*192
    Cabinet MaterialIron Cabinet (Aluminum Cabinet optional)
    Weight of cabinet4.8Kg
    Driving method1/16 scan constant current
    Frame frequency / Hz/S≥60
    Refresh frequency / Hz/S800~2000
    Brightness1200cd/m2
    Operating temperature–20C°~60C°
    Storage temperature–40C°~70C°
    Operation humidity10%-90%
    Storage humidity10%-90%
    IP Rrating (Front/Rear)IP43
    Working vlotageAC220V / AC110V ±10%
    Grey scale/color depthdisplaying colors≥16.7M(synchronized); 14bits
    Brightness adjustment256 levels of each color(manually)
    Input signalRF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
    Control systemlinsn/Colorlight/Nova(sending card,receiving cards and Hubs)
    Average of non-failure life≥50,00h
    Life span≥100,000h
    Functionaless dot rate≤0.0001
    Control distanceCAT cable: 100m; Muti-mode fiber: 500m; Single-mode fiber: 15km


    Supply Ability of RGB Stage LED Display :


    5000 Square Meter/Square Meters per Month


    FAQ :

    Q1. What is refresh rate?

    A: The refresh rate is the number of times a display's image is repainted or refreshed per second. As it denotes a frequency of a process, the refresh rate is expressed in hertz. For instance, a refresh rate of 75 Hz means the image is refreshed 75 times in one second.

    Q2. What is viewing angle?

    A: The Viewing angle is the maximum angle at which a display can be viewed with acceptable visual performance.

    Q3. What are Pixel Pitch and Pixel Density?

    A: The Pixel Pitch is the distance between neighboring pixels. The Pixel Density is the quantity of pixels per square meter.

    Q8: What is LED display?

    A: The LED display is a new kind of information and communication media, which is composed of the array of LED devices, used to display text, images, videos, TV programs, live broadcast, etc.


    Product features of RGB Stage LED Display:


    1. High quality LED chip and high anti-static electricity capacity.


    2. Large viewing angle and smooth displaying provide excellent visual effect from every angle. High brightness led, the brightness is more than 2000cd/m2, and the wavelength range is ±1.5NM, same batch the LED brightness rate is 1:1.2, 130 wide viewing angle.
